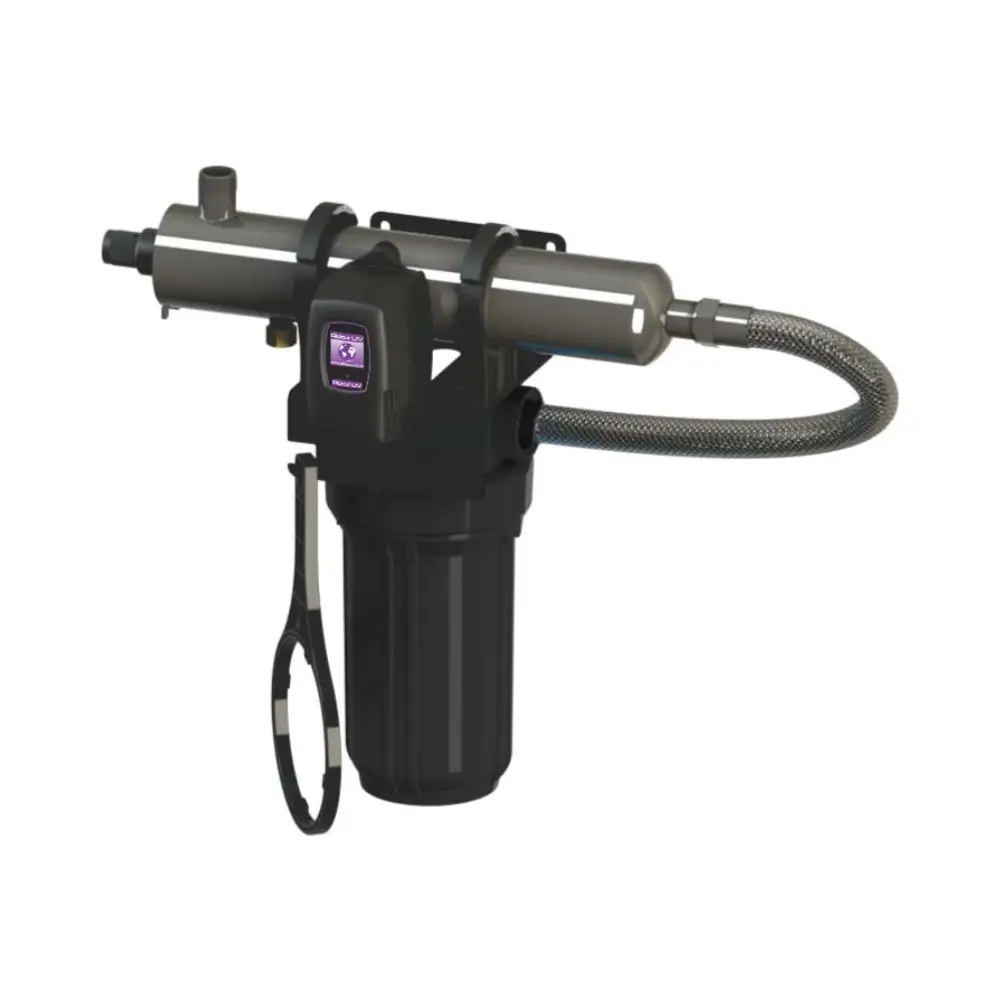

Atlas 8 GPM all in one UV filtration system
£1,432.80 inc. VAT
Atlas 8GPM UV filtration rack system for small to medium size houses
Atlas UV’s line of rack-mounted UV filtration systems offer the convenience of an all-in-one package making installation a simple “in & out” connection.
Designed to treat flow rates of 8 GPM, the rack mounted UV lamp provides 5 micron pre-treatment with the option of a full-flow, carbon filter to treat taste and odour.
Installation is simple with the ability to have the feedwater enter the filters from either the left or the right.
The system can be fitted with a UV sensor for smart monitoring of UV intensity and water quality. (Purchased separately.)
The colour screen user interface gives a multitude of screens displaying diagnostics, status, warnings and QR codes for a link back to Atlas UV’s website.
KEY FEATURES
- One-piece sump filter head designed for leak resistant operation (pressure relief, wrench, and integral hanging clip included with all systems)
- LED lamp countdown (4.1 series)
- Controller with Lightlock™ technology for protected lamp sales (5.1 variants)
- Universal mounting configuration for left or right feedwater access
- Expandability port for future upgrades and options (5.1 series)
- Axial flow, 316L stainless steel polished reactors, fully polished, designed & manufactured to ASME pressure vessel standards
- Reliable, industry proven, coated UV lamps
- Full customization available as an option – language, home screen, phone, QR codes, etc. (Available on 5.1/5.1 HO systems only.)
SYSTEM FEATURES
- One-piece, 2-cartridge filter heads for a leak-resistant design
- Filter housing drain plug
- 120 PSI operating pressure
- O-ring groove for fail-safe installation
- Silicon lubricant
- Pressure relief valve
MANUFACTURER’S WARRANTY
- REACTORS — Ten (10) year Limited Warranty
- ELECTRONICS — Three (3) year Limited Warranty
- UV LAMPS — One (1) year Limited Warranty
- QUARTZ SLEEVES — One (1) year Limited Warranty
Contact us for complete warranty document, including conditions and exclusions.
| Flow Rate | 8.GPM (30.3 lpm, 1.82m3/hr) |
|---|---|
| 1st Filter Housing | 5 micron sediment LC-10S |
| 2nd Filter Housing | N/A |
| Port Size | 1”MNPT |
| Electrical | 90-265V/50-60Hz. 1.5A Max. |
| Plug Type | British Standard: BS 1363 |
| Lamp Watts | 20 (standard-output lamp) |
| Power (Watts) | 23 (21 @ 230V.) |
| Max Current (amps | 1 |
| Chamber Material | Polished 316L stainless steel, A249 pressure rated tubing |
| Reactor Dimensions | 3.5 x 20.0” (8.9 x 50.8 cm) |
| Controller Dimensions | 17.2 x 9.2 x 10.2 cm (6.8 x 3.6 x 4”) |
| Operating Pressure | 0.7-8.3 bar (10-120 psi) |
| Operating Water Temperature | 2-40° C (36-104° F) |
| Replacement Lamp | RL-30 |
| Replacement Sleeve | RQ-H53 |
| UV Monitor | Optional (AUVS-L79) |
| Solenoid Output | YES (optional solenoid module (SCM) sold separately) |
| Dry Contacts | YES (remote alarm module (A-VFC) sold separately) |
| 4-20mA Output | YES (4-20mA module (A-4-20mA) sold separately) |
| Lamp Change Reminder (audible & visual) | YES |
| Lamp Out Indicator (audible & visual) | YES |
