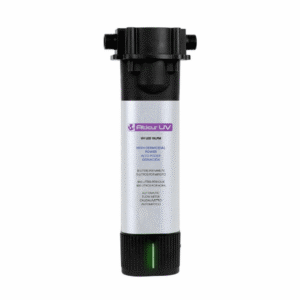

UV LED 15LPM
£552.00 inc. VAT
Mid-Range Capacity Meets Compact Design: 15 Litres Per Minute of Chemical-Free Protection
The UV LED 15LPM Water Steriliser delivers mid-range capacity chemical-free disinfection for busy households, small commercial kitchens, and light commercial applications. Treating up to 15 litres per minute of RO water or 7-11 litres of filtered water, this compact unit eliminates up to 99.9% of harmful bacteria and viruses using energy-efficient UV-C LED technology, intelligent flow-activated operation, and a robust design with 3,000-hour LED lifespan – all whilst consuming just 17W and maintaining water temperature.
UV LED 15LPM
The UV LED 15LPM Water Steriliser bridges the gap between compact domestic units and high-capacity commercial systems, delivering chemical-free disinfection for medium-demand applications. Using advanced UV-C LED technology, this mid-range unit eliminates up to 99.9% of harmful bacteria, viruses, and protozoa whilst treating up to 15 litres per minute – double the capacity of standard domestic systems with the same space-saving footprint.
Key Features & Benefits
- Flow-Activated Operation
Built-in flow switch automatically activates UV LEDs when water flow reaches 2 L/min and deactivates when flow stops, maximising LED lifespan and minimising energy consumption. - Chemical-Free Disinfection
Eliminates microorganisms through UV-C radiation without adding chlorine, chemicals, or by-products to your water supply. No taste, odour, or residue. - Universal Voltage Compatibility
Accepts 100-240V input, making installation straightforward across different electrical systems without requiring voltage converters. - Standard 1/2″ Connections
Female 1/2″ BSP threaded connections for straightforward integration with standard domestic and light commercial plumbing systems. - IP X7 Water Protection
Protected against temporary immersion in water up to 1 metre depth, ensuring safe operation even in wet under-sink environments or plant rooms. - Medium-Capacity Footprint
At 310mm long and 120mm diameter, the unit offers substantially increased capacity whilst remaining installable in most under-sink cabinets and equipment housings. - Wide Temperature Tolerance
Operates effectively across water temperatures from 2°C to 65°C, accommodating cold drinking water through to warm beverage and process applications.
Ideal Applications
- Busy Domestic Kitchens
Households with multiple occupants or frequent entertaining where simultaneous tap usage exceeds standard 7 LPM capacity. - Small Commercial Food Service
Cafés, sandwich bars, small restaurants, coffee shops, and food preparation areas requiring reliable, chemical-free water for beverages and food. - Dental & Medical Surgeries
Point-of-use protection for dental unit water lines, sterilisation equipment feeds, and clinical handwashing stations where higher flow rates are required. - Small Office & Corporate
Tea points, water coolers, and staff kitchens in offices with 10-30 employees where standard domestic capacity proves insufficient. - Salons & Beauty Therapy
Hair washing stations, treatment rooms, and client areas requiring microbiologically safe water at moderate flow rates. - Reverse Osmosis Systems (Medium Capacity)
Post-membrane disinfection for commercial RO systems or high-capacity domestic units serving multiple outlets simultaneously. - Coffee Equipment & Beverage Dispensers
Commercial coffee machines, espresso systems, and beverage dispensers requiring consistent water quality and flow rates above domestic levels. - Care Homes & Group Accommodation
Smaller care facilities, group homes, hostels, and multi-occupancy residences requiring enhanced water safety. - Laboratories & Research (Light Use)
Laboratory support areas, equipment washing stations, and utility water supplies for non-critical applications.
What’s in the Box
✓ UV LED Water Steriliser 15LPM unit (complete assembly)
✓ Universal power supply (100-240V input, 24VDC 1.5A output)
✓ 1/2″ BSP female threaded connections (pre-installed)
✓ Power cable with integrated flow switch
✓ Installation manual and safety information
✓ Mounting bracket
✓ Warranty registration card
Note: Isolation valves, additional pipework, threaded fittings, and installation tools are not included and must be sourced separately according to your specific installation requirements.
| Dimensions | 310mm (L) × 120mm (Ø) |
|---|---|
| Main Materials | Polypropylene (PP) / Aluminium Alloy |
| Input Voltage | 100-240V 50/60Hz (Universal) |
| Output Voltage | 24VDC 1.5A |
| Operating Temperature Range | 2°C to 65°C |
| Maximum Working Pressure | 0.8 MPa (8 bar) |
| Connection Type | 1/2" BSP Female Thread |
| Minimum Activation Flow | 2 L/min |
| Maximum Flow Rate – Filtered Water (10 micron) | 7-11 L/min |
| Maximum Flow Rate – RO Water | 15 L/min (900 L/hr) |
| Disinfection Efficacy | ≥99.9% reduction (E. coli @ ≤15 LPM) |
| UV LED Lifespan | 3,000 hours (operational) |
| UV Power Output | 17W |
| Ingress Protection Rating | IP X7 |
| Flow Control | Integrated flow switch |
What’s the difference between UV LED and traditional UV lamp systems?
UV LED systems offer several significant advantages over conventional UV lamps:
▪️Mercury-Free Technology:
UV LEDs contain no toxic mercury, eliminating environmental contamination risks during operation and disposal
▪️Instant Activation:
LEDs reach full germicidal power immediately, whereas traditional lamps require 3-5 minutes warm-up time
▪️Lower Energy Consumption:
Operating at 50W with intelligent standby mode, UV LEDs consume significantly less power than continuously-operating traditional UV lamps
▪️Extended Lifespan:
5,000 hours operational life provides longer service intervals compared to conventional 9,000-12,000 hour lamp life
▪️No Heat Generation:
UV LEDs don’t increase water temperature, whilst traditional lamps can add several degrees
▪️Durable Construction:
Solid-state design eliminates fragile glass tubes vulnerable to breakage or pressure damage
How do I know when the UV LED needs replacing?
The unit features an integrated visual status indication system:
▪️Blue Light: Standby mode – unit powered but no water flowing
▪️Green Light: Normal operation – UV LEDs active and water being treated
▪️Red Light: End of service life – LED module requires replacement
When the status indicator shows red, the LED module should be replaced to maintain optimal disinfection performance. Based on typical domestic or commercial use patterns, this usually occurs after 12-24 months depending on daily water consumption. We recommend keeping a spare LED module on hand to minimise any interruption to treated water supply.
Does this unit work with both filtered and reverse osmosis water?
Yes, our UV LED water sterilisers are designed to treat both filtered and reverse osmosis water, though maximum flow rates differ:
▪️Filtered Water (10 micron or finer): Maximum flow rate 37 L/min
▪️Reverse Osmosis Water: Maximum flow rate 50 L/min
The higher flow rate allowable for RO water reflects its superior clarity and UV transmittance compared to filtered water. Regardless of source water type, pre-filtration to at least 10 microns is essential for effective UV disinfection, as suspended particles can shield microorganisms from UV-C exposure. The unit will not function effectively with unfiltered water or water containing visible turbidity.
What flow rate does the unit need to activate, and what’s the maximum it can handle?
Minimum Activation Flow: 7 L/min
The integrated flow switch requires at least 7 litres per minute flowing through the unit to activate the UV LEDs. Below this threshold, the unit remains in standby mode to conserve energy and extend LED lifespan.
Maximum Flow Rates:
37 L/min (2,220 L/hour) for filtered water
50 L/min (3,000 L/hour) for reverse osmosis water
These maximum flow rates ensure sufficient contact time between the UV-C radiation and microorganisms to achieve ≥99.9% disinfection efficacy. Exceeding these flow rates reduces contact time and may compromise treatment effectiveness. For applications requiring higher flow rates, consider installing multiple units in parallel or specifying a higher-capacity model.
Can I install this unit myself, or does it require a professional installer?
Installation complexity depends on your existing plumbing configuration and technical competence:
Suitable for Competent DIY Installation if:
▪️You have basic plumbing skills and appropriate tools
▪️Your installation involves straightforward connections to existing 1″ pipework
▪️You’re comfortable working with threaded pipe connections
▪️Mains electrical supply is readily accessible
Professional Installation Recommended if:
▪️Significant modifications to existing plumbing are required
▪️You’re integrating the unit with commercial equipment or complex water systems
▪️Installation involves hard-wired electrical connections
▪️You’re uncertain about pressure ratings or flow requirements
▪️Local regulations require licensed plumber certification
Key Requirements:
▪️Unit must be installed as the final treatment stage before point of use
▪️Pre-filtration to 10 microns or finer must be in place
▪️Isolation valves should be fitted before and after the unit
▪️Electrical connection must comply with local wiring regulations
▪️System pressure must not exceed 20 bar
When in doubt, consult a licensed plumber or water treatment specialist to ensure compliant installation and optimal performance. Incorrect installation may compromise disinfection effectiveness or void warranty coverage.
